Metering pump

The MP metering somps are a diverse range of diaphragm and plunger pumps used for highly accurate liquid metering and blending in industrial applications. They are known for their modular design, which allows for extensive customization to meet specific flow rate and pressure requirements.

Design and working principle

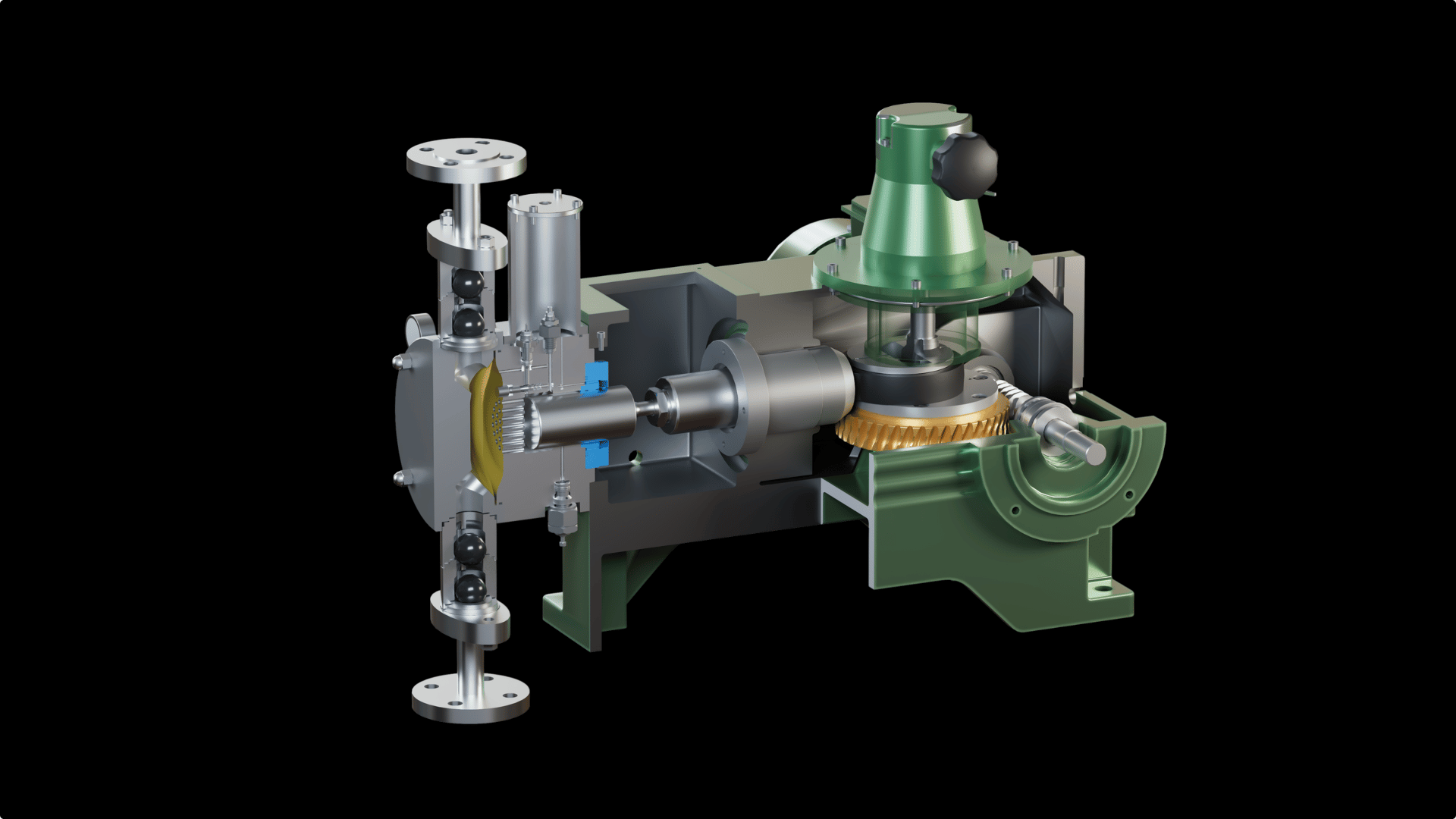

GMP metering pumps operate on a reciprocating positive displacement principle, using a motor-driven gear mechanism to convert rotary motion into precise linear plunger movement. This motion drives diaphragm or plunger pumpheads, delivering accurate flow rates up to 1,000 bar by adjusting a z-shaped crankshaft to control stroke length, even while operating.

Technical data

Technology: The series includes both leak-free diaphragm pumps (for toxic or pure liquids) and plunger pumps (for lower investment cost applications).
Performance: They offer a wide range of performance parameters, with flow rates from 0.1 l/h to over 40,000 l/h on a single head, and operating pressures up to 1,000 bar (approx. 14,500 psi).
Modularity: Nearly all gear sizes can be combined in horizontal or vertical configurations to create simplex (single) or multiplex (multiple) pump systems, with each pump head capable of independent flow rate adjustment.
Accuracy: They exceed the requirements of API 675 standards for accuracy, linearity, and reproducibility, with a metering accuracy as good as ±0.5%.
Control: Flow rate adjustment options include manual, electric, pneumatic, or variable speed drives, often utilizing a unique Z-shaped crankshaft mechanism.
材料: Liquid-wetted components are available in materials like stainless steel (e.g., 316L, Super Duplex), PVC, PP, Hastelloy, or Titanium, with PTFE or stainless steel diaphragms and ceramic or stainless steel plungers

Specification

Hydraulic Diaphragm Metering Pumps

Delivering a high level of precision and repeatability in the metering of chemicals across a broad range of industrial processes, GENIPUMP delivers quality metering pump for applications requiring reliability in even the most challenging environments.

Technical 特色

> Flow rate: Up to 660 l/h

> Pressure: Up to 124 bar

> Material of pump head: SS 316L, PP, PVDF and PVC-U

> Stroke length: 10 to 25 mm

> Diaphragm diameter: 12-200 mm

> Motor: 0.18/~45 kW

Mechanisms

> Positive return type

> Low-noise integral worm gearbox, oil bath lubricated

> Rotating parts on ball bearings to minimize wear

> High-precision linear stroke adjustment, both manual and via electrical acuator.
